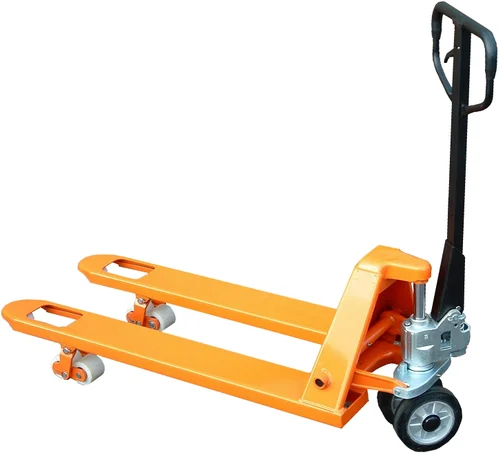

A manual pallet truck, also known as a pallet jack, is a manual tool for lifting and moving palletized loads over short distances. It consists of two forks, a hydraulic pump system operated by a handle, and wheels for steering. To use it, the operator slides the forks under a pallet, pumps the handle to lift the load off the ground, and then pushes or pulls the truck to the desired location.

Components and how it works

• Forks: Two prongs that slide under a pallet. They are lifted and lowered by the hydraulic system.
• Hydraulic pump: Located in the handle, this system raises the forks when pumped.
• Handle: Used to both pump the hydraulic system to lift the forks and to steer the truck.
• Release valve: A mechanism on the handle that is used to lower the forks and the pallet to the ground.
• Wheels: Located at the front and rear for easy movement and steering. They are typically made of materials like rubber for a smoother ride and less vibration, says Linde Material Handling.

Key features and benefits

• Manual operation: It is powered by the operator and does not require electricity or batteries.
• Simplicity: With few moving parts, maintenance is low, and operation is intuitive.
• Maneuverability: It is easy to maneuver in tight spaces where a larger forklift might be impractical.
• Versatility: Used widely in warehouses, factories, retail, and logistics for moving goods.
• Specialty models: Some models include features like integrated scales for weighing loads or high-lift capabilities for stacking.

How to use a manual pallet truck

1. Position the forks: Slide the forks completely under the pallet.
2. Lift the pallet: Pump the handle to raise the forks, lifting the pallet slightly off the floor.
3. Move the pallet: Push or pull the truck to the desired location.
4. Lower the pallet: Use the release valve on the handle to gently lower the forks and set the pallet down.
